| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 226 CFM (6400 L/Min.) |
| Alternate Mfr Part Number | OD1238-24HB-VXC10A |
| Approximate Thickness | 1.5 In. (38 mm) |
| Depth | 0.079" (2mm) |
| Dimensions | 4.724 x 4.724 x 1.496 In. (120 x 120 x 38 mm) |
| Fan Type | DC |
| Height | 4.724" (120mm) |
| Maximum Current | 1.7 |
| Noise Level | 65 dB |
| Primary Type | Fan |
| Shop By | Factory Choice |
| Size, Approximate | 4.7 x 4.7 In. (120 x 120 mm) |
| Special Features | Brushless DC, Auto Restart, Polarity Protected Motor |
| Standards | UL, cUL, TUV |
| UPC Code | 5056112071426 |
| Voltage Rating | 24 VDC |
| Warranty | 3 Year Warranty |
Overview

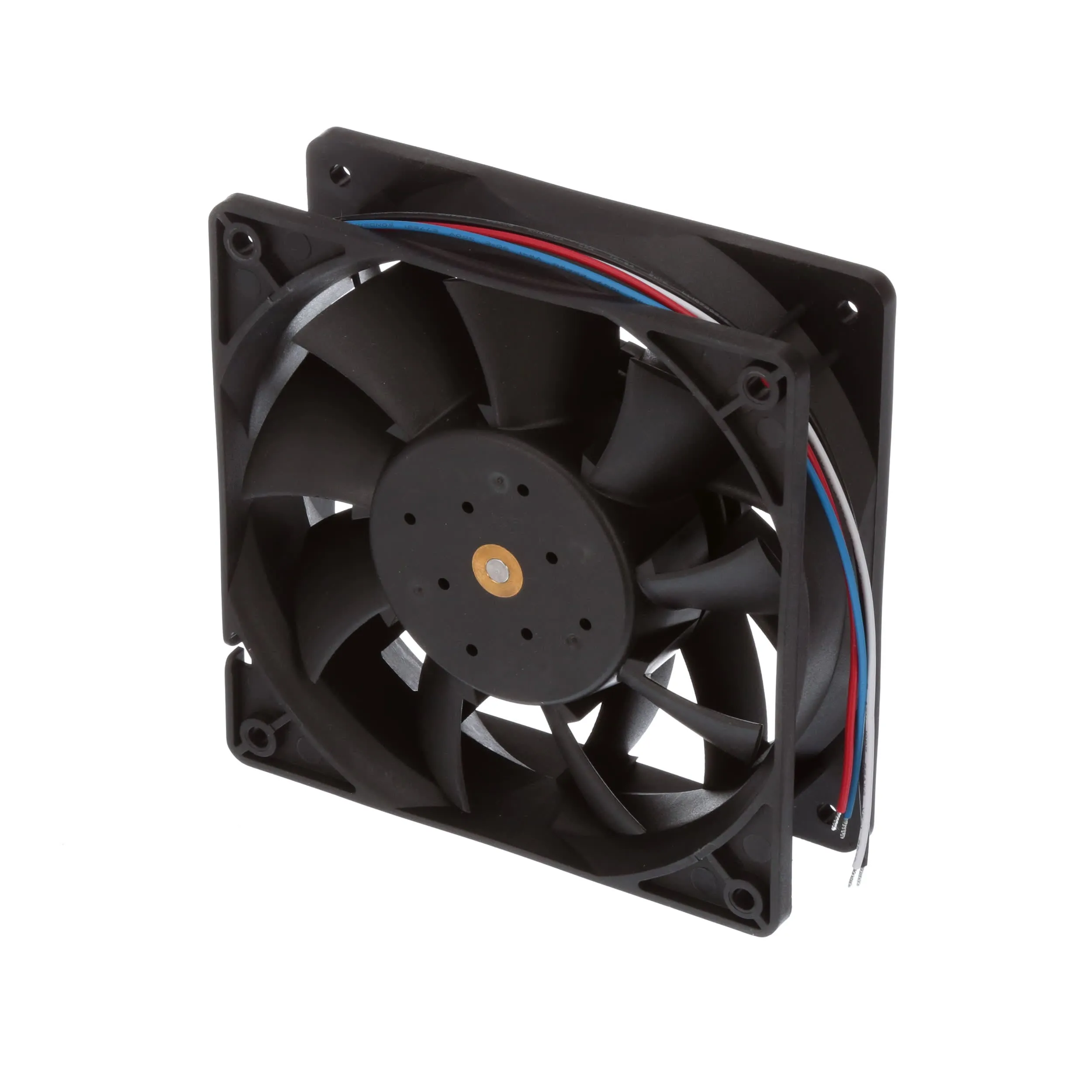

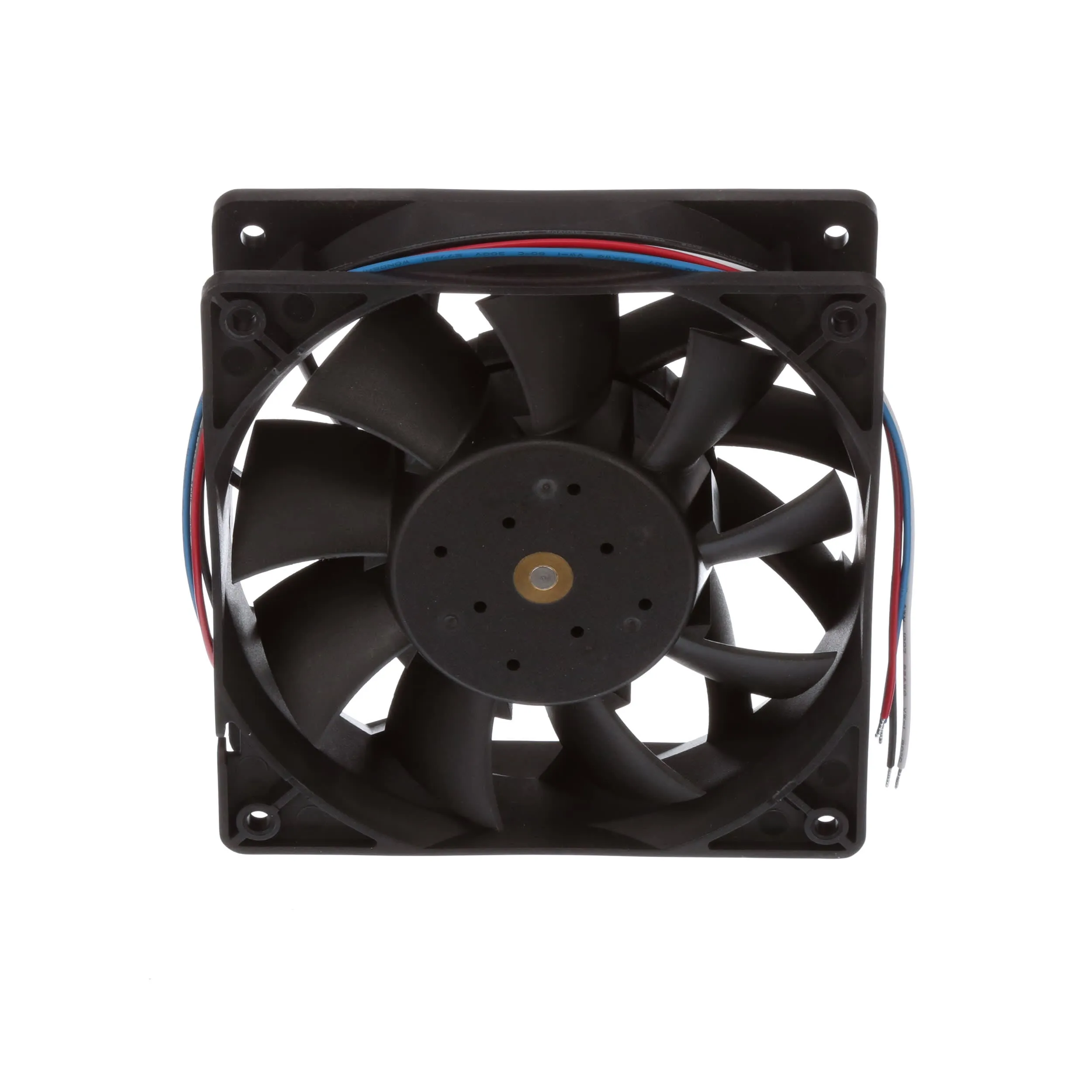

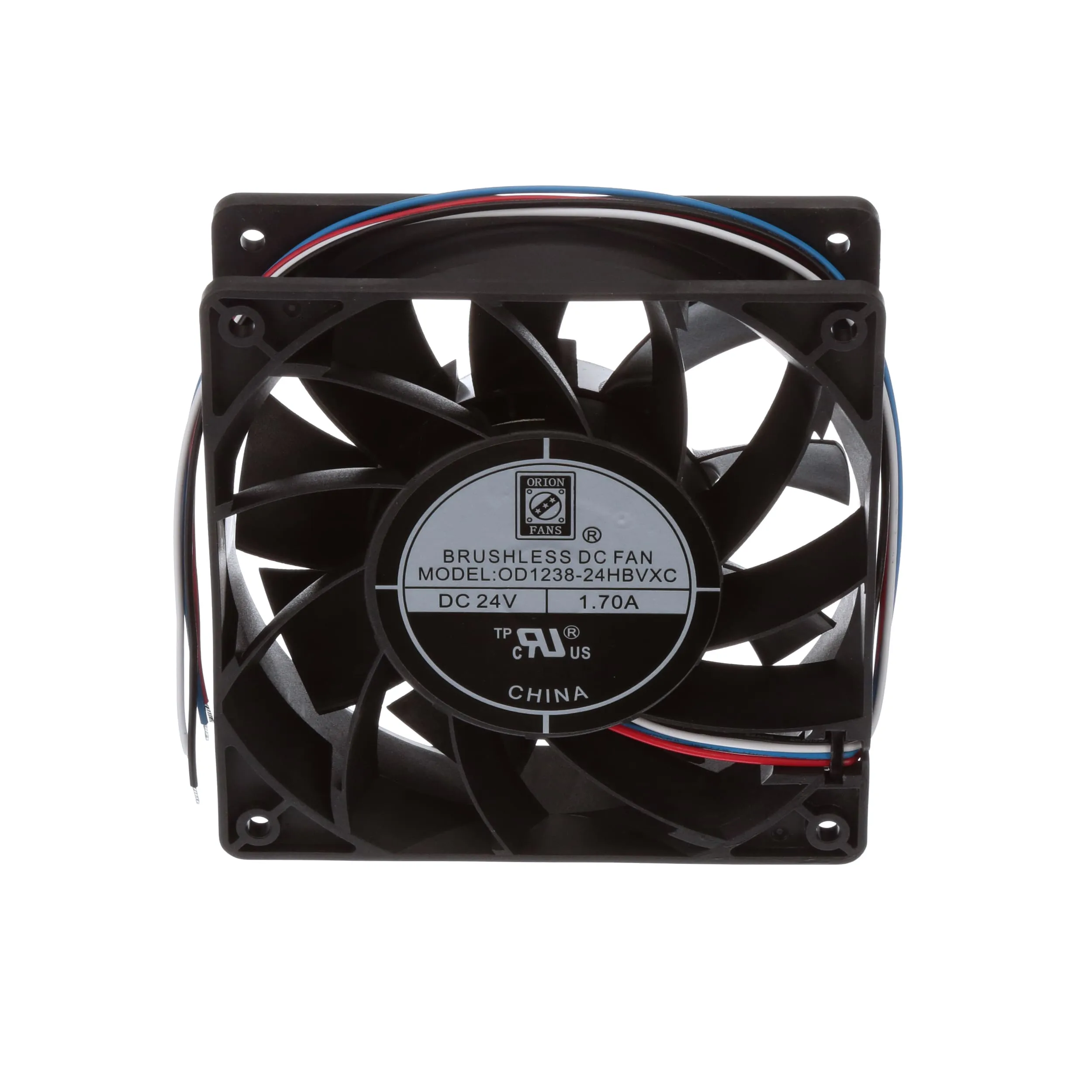

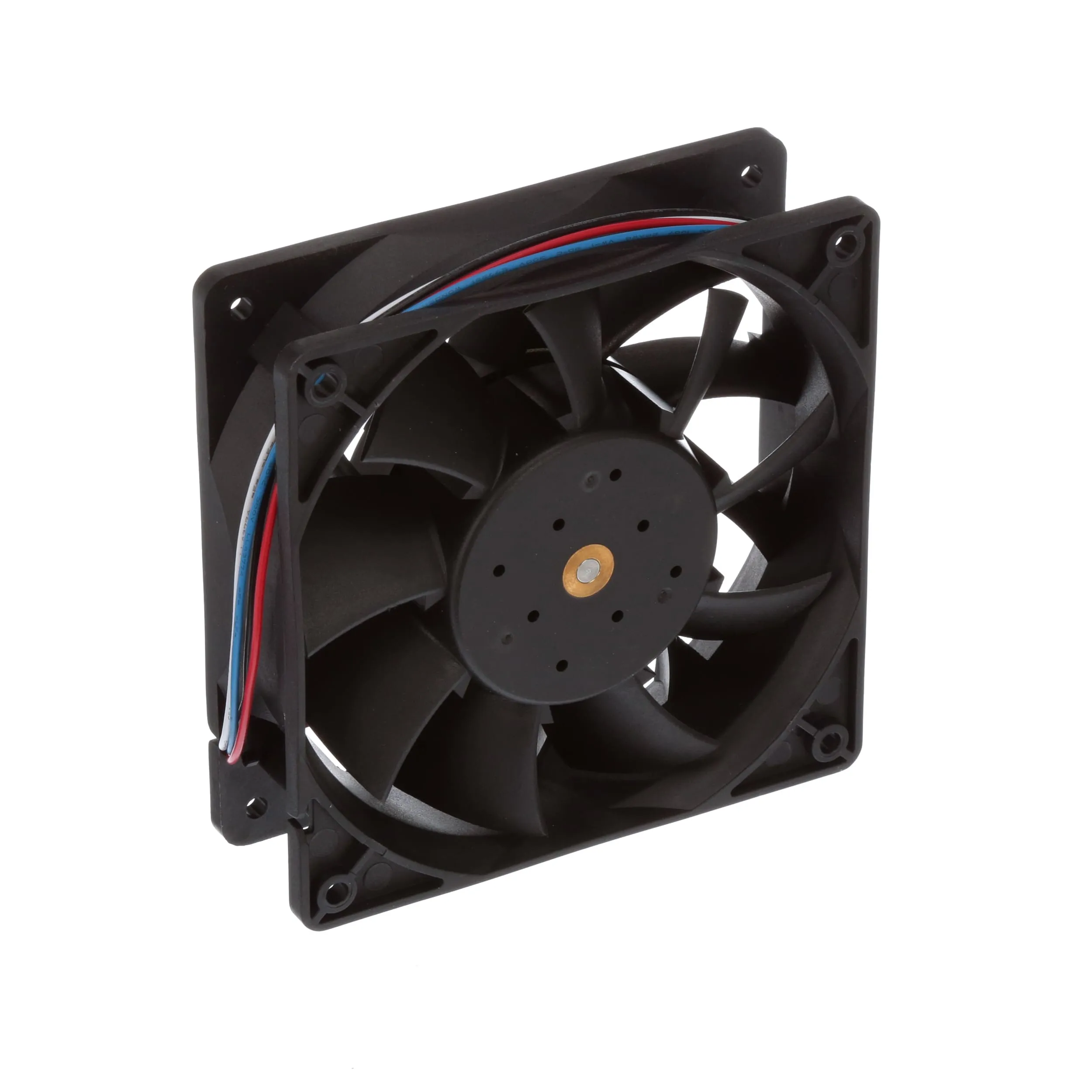

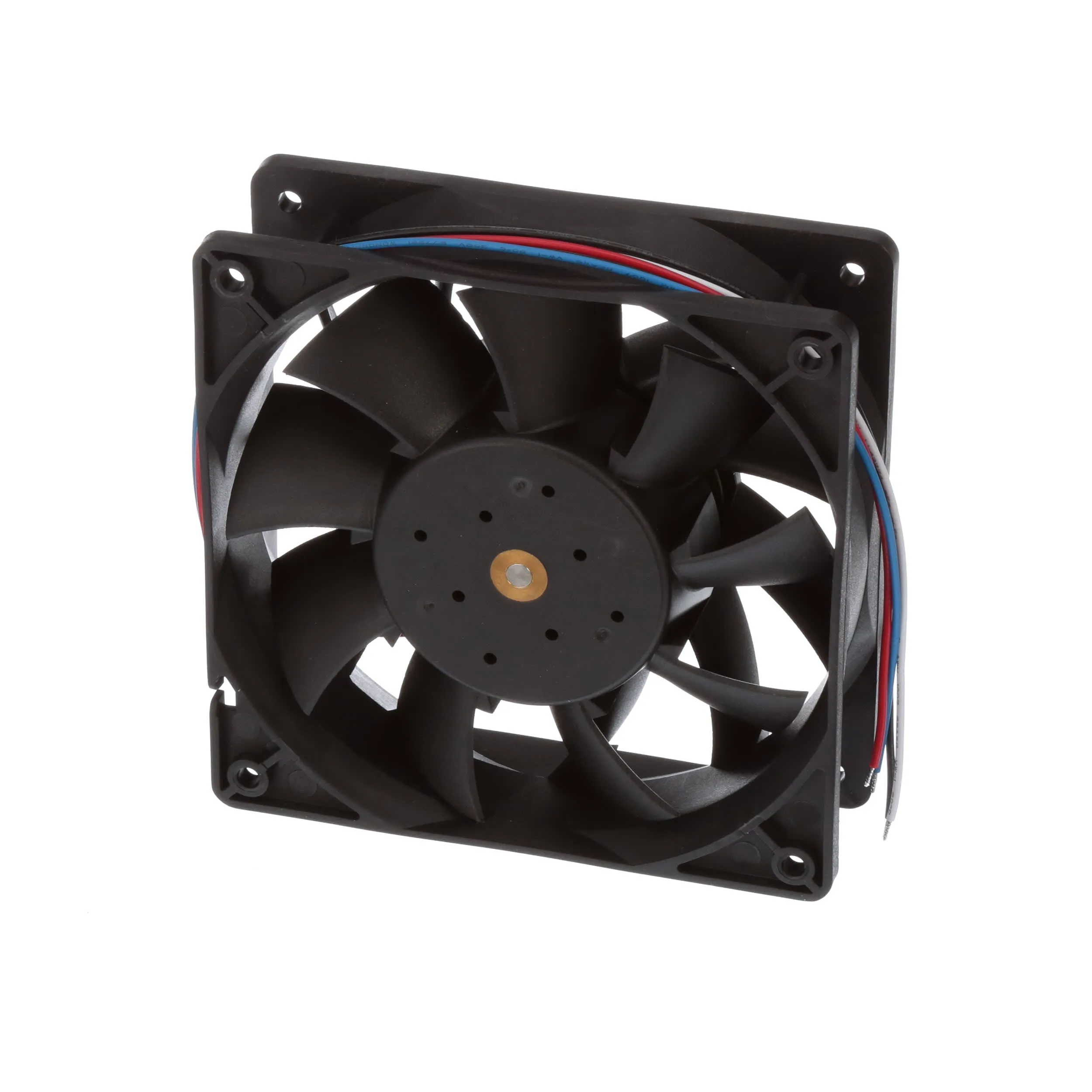

RS DC Vane Axial High Pressure Fans
RS DC vane axial high pressure fans provide a general purpose, compact, cost-effective and reliable solution to a variety of requirements.
